>BOOM ARTICULATING

KNUCKLE BOOM 80'

Where to find KNUCKLE BOOM 80 in Los Angeles

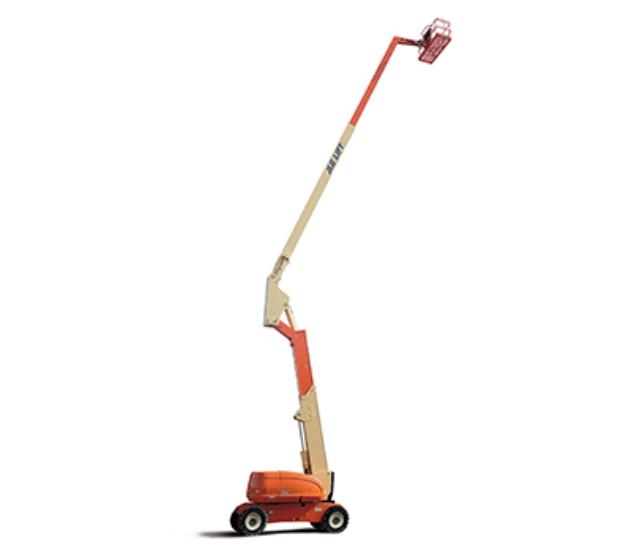

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Daily: Request Quote

Weekly: Request Quote

Quantity:

Additional Information

  • Key Specs
  • Platform Height: 80 ft / 24.38 m
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m
  • Key Features
  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • With Workstation in the Sky accessories, you will have all you need to get the job done
  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
  • Power Source
  • Auxiliary Power 12 Volts DC
  • Capacity - Fuel Tank 39 gal. / 147.63 L
  • Engine Type - Diesel DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type - Dual Fuel Ford MSG425 84hp
  • Performance
  • Axle Oscillation 0 in. / 0 m
  • Drive Speed - 2WD 3 mph / 4.83 km/h
  • Drive Speed - 4WD 3 mph / 4.83 km/h
  • Gradeability - 2WD 30 %
  • Gradeability - 4WD 45 %
  • Platform Capacity - Unrestricted 500 lb / 226.80 kg
  • Swing 360 Degrees
  • Swing Type Continuous
  • Turning Radius - Outside (2WS) 19 ft 8 in. / 5.99 m
  • Turning Radius - Outside (4WS) 11 ft 7 in. / 3.53 m
  • Jib - Range of Articulation 130 Degrees
  • Dimensional Data
  • Ground Clearance 1 ft / 0.3 m
  • Machine Height 9 ft 10 in. / 3 m
  • Machine Length 36 ft 6 in. / 11.13 m
  • Machine Width 8 ft 2 in. / 2.49 m
  • Platform Dimension A 3 ft / 0.91 m
  • Platform Dimension B 8 ft / 2.44 m
  • Tailswing 2 ft 6 in. / 0.76 m
  • Tire Size 15-625 Pneumatic

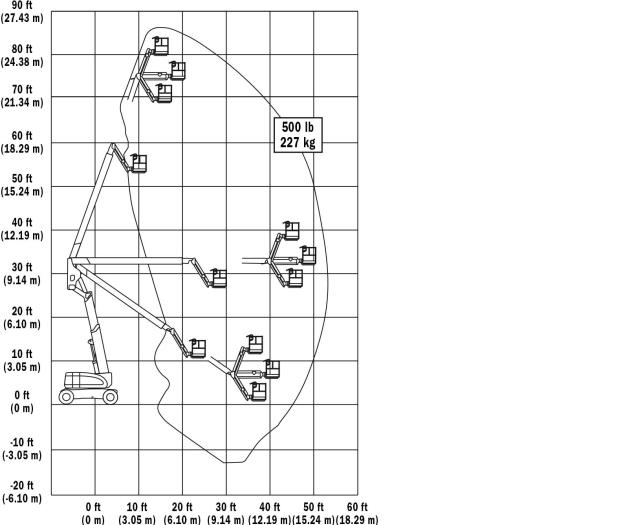

  • Reach Specifications
  • Horizontal Jib Rotation 0 Degrees
  • Horizontal Outreach 51 ft 10 in. / 15.8 m
  • Platform Height 80 ft / 24.38 m
  • Up and Over Height 32 ft 1 in. / 9.78 m
  • General
  • Capacity - Hydraulic Reservoir 40 gal. / 151.42 L
  • Maximum Ground Bearing Pressure 76 psi / 5.32 Kg/cm2
  • Machine Weight 34130 lb / 15481.11 kg

* Please submit a quote request or call us for pricing or questions about our knuckle boom 80 foot rentals in Artesia CA, Los Angeles, San Diego, Palm Springs, and Southern California.
