MINI EXCAVATOR 5.6K

Manufacturer Link: <Click Here>

Where to find MINI EXCAVATOR 5.6K in Los Angeles

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Daily: Request Quote

Weekly: Request Quote

Quantity:

Additional Information

  • Dimensions
  • Boom/Stick Option (HEX) 1
  • K
  • Max Reach Along Ground
  • 14.9ft in
  • M
  • Max Digging Depth
  • 8.5ft in
  • Dimensions
  • G
  • Height to Top of Cab
  • 7.91ft in
  • Specifications
  • Engine
  • Fuel
  • Diesel
  • Gross Power
  • 24.8hp
  • Power Measured @
  • 2500rpm
  • Emissions
  • Tier 4
  • Operational
  • Operating Weight
  • 5666lb
  • Fuel Capacity
  • 9.1gal
  • Undercarriage
  • Min Travel Speed
  • 1.5mph
  • Max Travel Speed
  • 2.8mph
  • Hydraulic System
  • Operating pressure
  • 2610psi
  • Pump Flow Capacity
  • 12.5gal/min
  • Lift
  • Lift Radius
  • 118in
  • Max Lift Capacity
  • 1997lb
  • Boom/Stick Option (HEX) 1
  • Boom Swing - Right
  • 60degrees
  • Boom Swing - Left
  • 60degrees
  • Max Digging Depth
  • 8.5ft in
  • Max Reach Along Ground
  • 14.9ft in
  • Max.Dumping Height
  • 9.9ft in
  • Arm Digging Force
  • 3552lb
  • Bucket Digging Force
  • 4991lb
  • Dimensions
  • Length
  • 170.4 in
  • Height
  • 94.9in
  • Width
  • 59.6 in
  • Height to Top of Cab
  • 8ft in

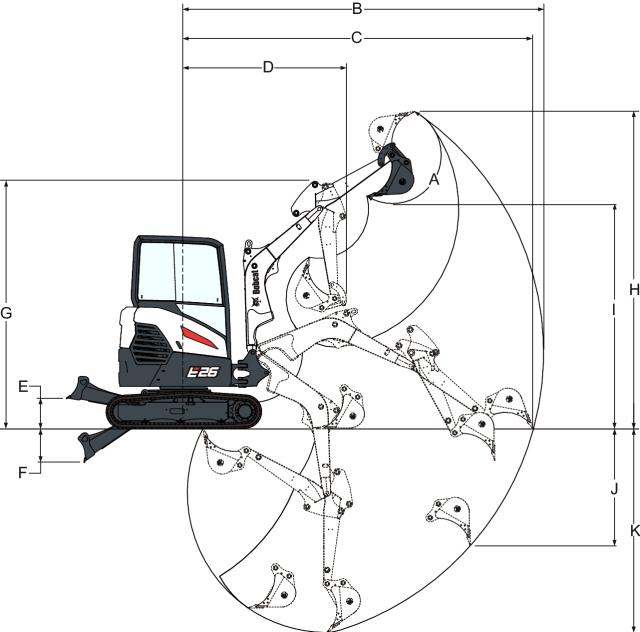

  • WORKING RANGE
  • (A) Bucket pivot angle 185
  • (B) Maximum reach of working equipment 4,678 mm
  • (B*) Maximum reach of working equipment, long dipperstick 4,966 mm
  • (C) Maximum reach at ground level 4,553 mm
  • (C*) Maximum reach at ground level, long dipperstick 4,850 mm
  • (D) Maximum working equipment radius with boom at maximum height and dipperstick fully retracted 2,132 mm
  • (D*) Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick 2,135 mm
  • (E) Maximum blade height 385 mm
  • (F) Maximum blade depth 315 mm
  • (G) Maximum height of working equipment with dipperstick retracted 3,246 mm
  • (H) Maximum bucket tooth height 4,272 mm
  • (H*) Maximum bucket tooth height, long dipperstick 4,473 mm
  • (I) Maximum dump height 3,057 mm
  • (I*) Maximum dump height, long dipperstick 3,258 mm
  • (J) Maximum depth of vertical wall which can be excavated 1,809 mm
  • (J*) Maximum depth of vertical wall which can be excavated, long dipperstick 2,078 mm
  • (K) Maximum digging depth 2,582 mm
  • (K*) Maximum digging depth, long dipperstick 2,890 mm

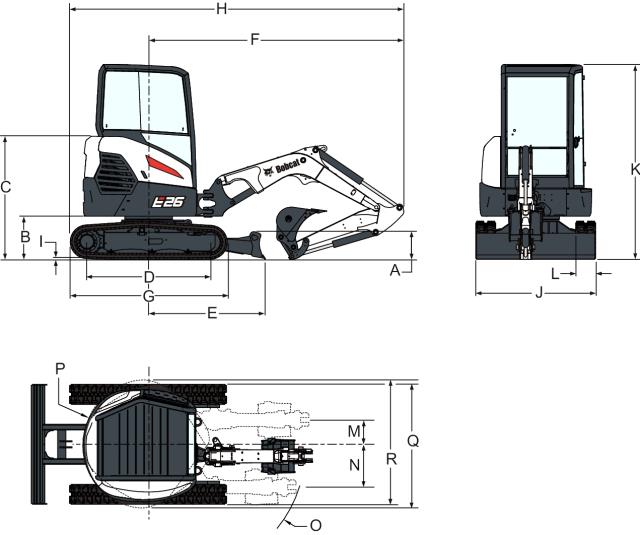

  • DIMENSIONS
  • (A) Blade height 319 mm
  • (B) Clearance, upper structure to ground line 539 mm
  • (C) Ground line to top of engine cover 1,540 mm
  • (D) Length of track on ground 1,543 mm
  • (E) Machine centre line to blade 1,462 mm
  • (F) Minimum radius in travel position 3,192 mm
  • (G) Overall length of track assembly 1,965 mm
  • (H) Overall length in travel position 4,174 mm
  • (I) Track lug height 21 mm
  • (J) Blade width 1,500 mm
  • (K) Height 2,438 mm
  • (L) Track width 250 mm
  • (M) Machine centre line to working equipment centre line, left-hand rotation 580 mm
  • (N) Machine centre line to working equipment centre line, right-hand rotation 705 mm
  • (O) Minimum turning radius 1,755 mm
  • (P) Swing clearance, rear 820 mm
  • (P*) Swing clearance, rear (zero tail swing), long dipperstick 840 mm
  • (Q) Working width at maximum right-hand rotation 1,741 mm
  • (R) Working width at maximum left-hand rotation 1,616 mm
