+COMPACTION

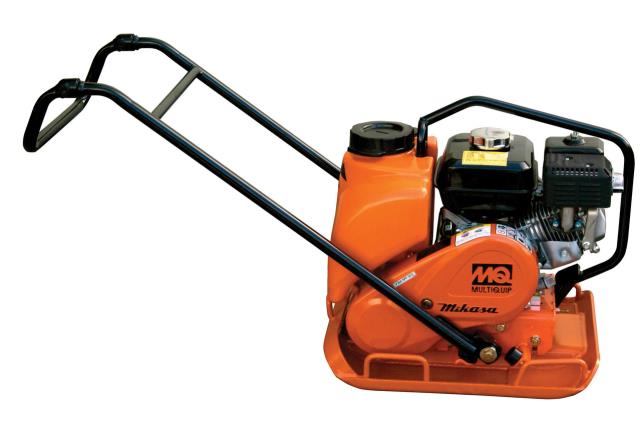

VIBRATORY PLATE

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Request Quote

Weekly: Request Quote

Additional Information

Recognized as the industry standard for compacting granular soils and asphalt.
Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
Solid, high-strenght steel base plate for durability.
Tubular steel roll bar protects engine components and provides central lifting point.
Sealed belt cover keeps dirt and rocks out extending belt life.
Open base plate design makes for easier removal of dirt and rock build-up.
Cog-tooth belt drive enables longer life compared to conventional V-belts.
Front mounted exciter assembly allows for easy service access.
Removable, tool-free water tank can easily be refilled to 11.5 quart capacity.
Unit Specifications
Centrifugal Force 3080 lbf 13.7 kN
Exciter Speed 5600 VPM
Plate Size 17.7 x 22.4 in
450 x 570 mm
Max Forward Speed
Per Min. 72 ft 22 m
Fuel Consumption
Per Hour 0.31 gal 1.17 L
Water Tank Capacity 11.5 qt 10.88 L
Dimensions & Weights
Overall Length 36 in 914 mm
Overall Width 17.7 in 450 mm
Overall Height 39.5 in 1003 mm
Shipping Dimensions 33.5 x 18.5 x 27 in
851 x 470 x 686 mm
Operating Weight 181 lb 82 kg
Shipping Weight 200 lb 91 kg

* Please submit a quote request or call us for pricing or questions about our vibratory plate rentals in Artesia CA, Los Angeles, San Diego, Palm Springs, and Southern California.
