>TELEHANDLERS

FORKLIFT,3K LB, 13'TELESCOPING

Manufacturer Link: <Click Here>

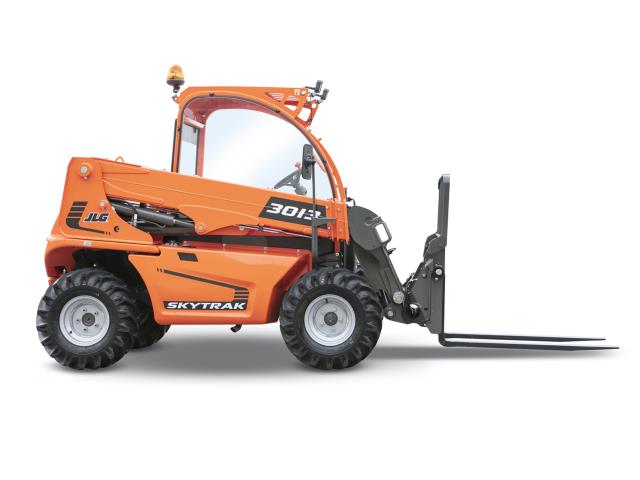

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: SKYTRAK

Model: 3013

Daily: Request Quote

Weekly: Request Quote

Quantity:

Additional Information

Key SpecsSEE ALL SPECS

Maximum Lift Capacity: 2700 lb / 1224.70 kg
Maximum Lift Height: 13 ft 1 in. / 3.99 m
Maximum Reach: 7 ft 1 in. / 2.16 m

Performance

Drawbar Pull 2623 lb / 1189.77 kg
Lift Capacity at Full Height 1555 lb / 705.34 kg
Lift Capacity at Max Reach 1200 lb / 544.31 kg
Load Center 2 ft / 0.61 m
Maximum Lift Capacity 2700 lb / 1224.70 kg
Maximum Lift Height 13 ft 1 in. / 3.99 m
Maximum Reach 7 ft 1 in. / 2.16 m
Outriggers or Stabilizers No
Outside Turning Radius 9 ft 9 in. / 2.97 m
Speed - Maximum Lift 10.9 sec.
Speed - Maximum Lower 7.7 sec.
Speed - Maximum Telescope In 4.5 sec.
Speed - Maximum Telescope Out 7.5 sec.
Speed - Maximum Travel 10.5 mph / 16.90 km/h

Dimensional Data

Ground Clearance 10 in. / 0.25 m
Machine Height 6 ft 7 in. / 2.01 m
Machine Length 8 ft 9 in. / 2.67 m
Machine Width 4 ft 7 in. / 1.4 m
Tire Size 11 / 65 x 12 Pneumatic Ag Tread
Wheelbase 5 ft 7 in. / 1.7 m

Power Source

Capacity - Fuel Tank 14.5 gal. / 54.89 L
Engine Horsepower 24.8 hp / 18.50 kW
Engine Manufacturer Kubota
Engine Model V-1505

General

Axle-Front High Bias, Limited Slip
Axle-Rear Oscillating
Function Pump Type Gear
Hydraulic System Pressure 3988 psi / 279.28 Kg/cm2
Operating Vehicle Weight 5280 lb / 2394.97 kg
Transmission - Nr Forward Gears Standard 1
Transmission - Nr Reverse Gears 1
Transmission Type Hydrostatic
Maximum Engine RPM 2300 rpm

* Please submit a quote request or call us for pricing or questions about our forklift 3k lb 13 foot telescoping rentals in Artesia CA, Los Angeles, San Diego, Palm Springs, and Southern California.
