>TELEHANDLERS

FORKLIFT, 9K, 43' TELEHANDLER

Manufacturer Link: <Click Here>

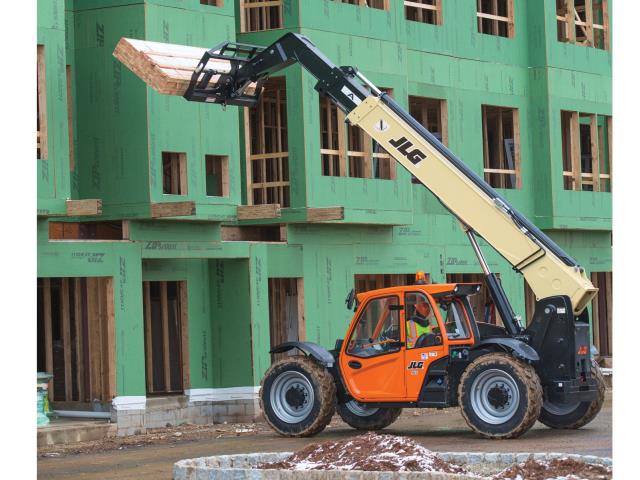

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Request Quote

Weekly: Request Quote

Additional Information

Key Specs
Maximum Lift Capacity: 9000 lb / 4082.33 kg
Maximum Lift Height: 43 ft / 13.11 m
Maximum Reach: 30 ft 5 in. / 9.27 m
Performance
Drawbar Pull 22751 lb / 10319.68 kg
Frame Leveling 10 Degrees
Lift Capacity at Full Height 7000 lb / 3175.15 kg
Lift Capacity at Max Reach 1200 lb / 544.31 kg
Load Center 2 ft / 0.61 m
Maximum Lift Capacity 9000 lb / 4082.33 kg
Maximum Lift Height 43 ft / 13.11 m
Maximum Reach 30 ft 5 in. / 9.27 m
Outriggers or Stabilizers No
Outside Turning Radius 12 ft / 3.66 m
Speed - Maximum Lift 13 sec.
Speed - Maximum Lower 9 sec.
Speed - Maximum Telescope In 13 sec.
Speed - Maximum Telescope Out 15 sec.
Speed - Maximum Travel 19 mph / 30.58 km/h
Dimensional Data
Ground Clearance 1 ft 5 in. / 0.43 m
Machine Height 8 ft 2 in. / 2.49 m
Machine Length 19 ft 9 in. / 6.02 m
Machine Width 8 ft 1 in. / 2.46 m
Tire Size 370/75-28
Wheelbase 11 ft 3 in. / 3.43 m
Power Source
Capacity - Fuel Tank 38.3 gal. / 144.98 L
Engine Horsepower 110 hp / 82.06 kW
Engine Manufacturer Cummins
Engine Model QSF3.8L Tier 4 Final
Maximum Engine RPM 1500 rpm
General
Axle-Front High Bias, Limited Slip
Axle-Rear Planetary
Function Pump Type Load Sensing Piston
Operating Vehicle Weight 24912 lb / 11299.89 kg
Service Brake Type Wet Multi-Disc
Transmission - Nr Forward Gears Standard 4
Transmission - Nr Reverse Gears 3
Transmission Type Powershift

* Please submit a quote request or call us for pricing or questions about our forklift 9k 43 foot telehandler rentals in Artesia CA, Los Angeles, San Diego, Palm Springs, and Southern California.
